Pneumatic coil nailer

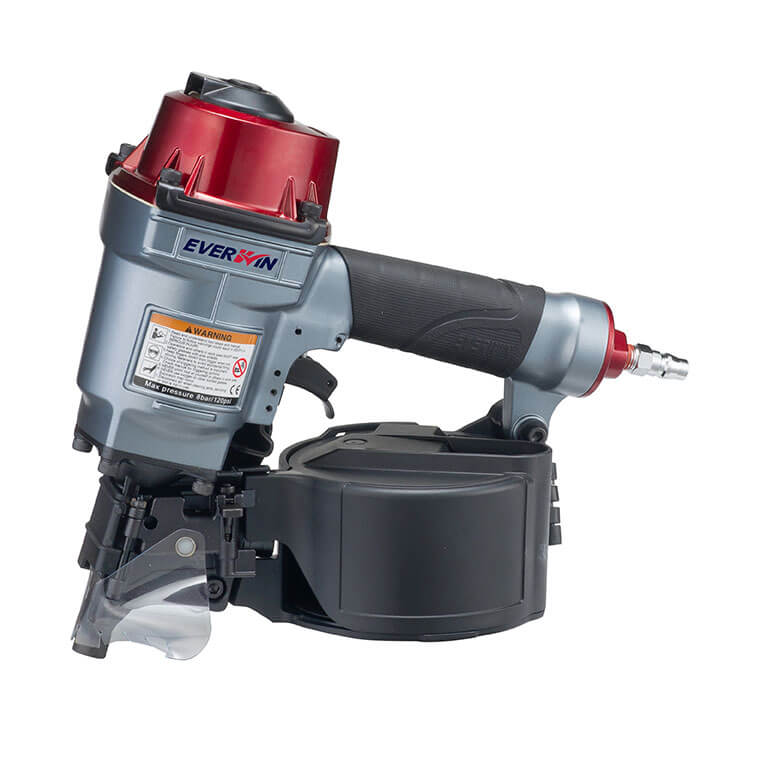

PN57B
The PN57B Coil Nailer is designed to drive up to a 2-1/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life.
- Metal nail tray with industry leading durability.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- 360° multi directional exhaust cover.
- Two trigger options available : PN57B-ST (sequential) / PN57B-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 200~400 |
| A | 25~57mm (1"~2-1/4") |
| B | 5.0~5.7mm (0.197"~0.224") |
| C | 2.1~2.3mm (0.083"~0.090") |
TOOL SPECS
| Weight | 2.6 kgs (5.7 lbs) |
|---|---|
| Height | 283mm (11.1") |
| Width | 131mm (5.2") |
| Length | 270mm (10.6") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 439 In-lbs @100 psi |

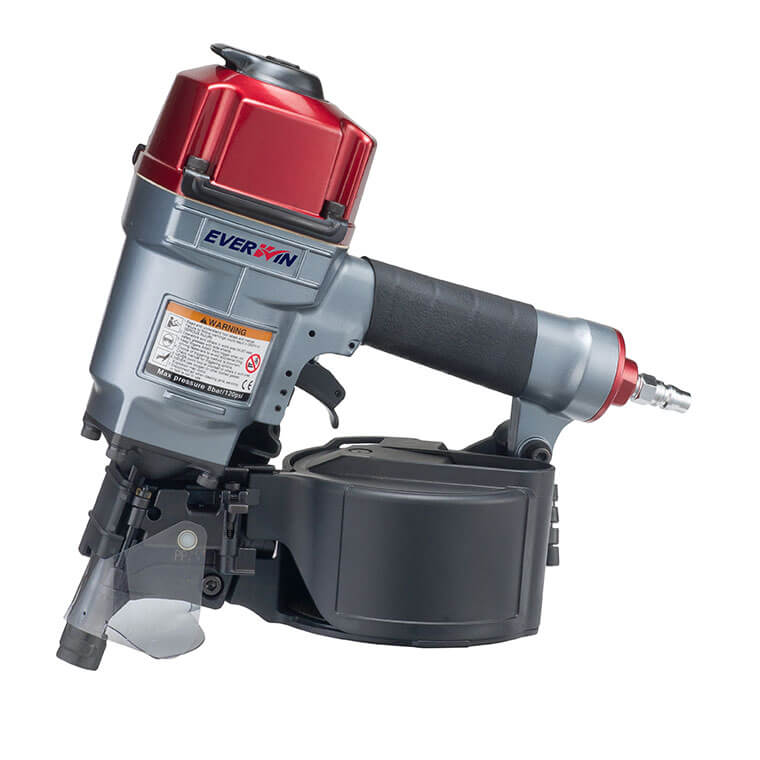

PN58
The PN58 Coil Nailer is designed to drive up to a 2-1/4" nail with EXTRA POWER. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life.
- Metal nail tray with industry leading durability.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- 360° multi directional exhaust cover.
- 13% more powerful than PN57.
- Optional heavy duty depth adjustment.
- Reinforced upgrade of the old PN57HD.
- Two trigger options available : PN58-ST (sequential) / PN58-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 300~350 |
| A | 25~57mm (1"~2-1/4") |
| B | 5.0~5.7mm (0.197"~0.224") |
| C | 2.1~2.3mm (0.083"~0.090") |
TOOL SPECS
| Weight | 2.7 kgs (5.9 lbs) |
|---|---|
| Height | 294mm (11.6") |
| Width | 131mm (5.2") |
| Length | 270mm (10.6") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 499 In-lbs @100 psi |
PN65M
The PN65M Coil Nailer is designed to drive up to a 2-1/2" nail with EXTRA POWER. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life.
- Metal nail tray with industry leading durability.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- Fast and powerful for heavy duty applications.
- Optional heavy duty depth adjustment
- Two trigger options available : PN65M-ST (sequential) / PN65M-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 225~300 |
| A | 38~65mm (1-1/2"~2-1/2") |
| B | 5.7~7.2mm (0.224"~0.283") |
| C | 2.3~2.9mm (0.092"~0.113") |
TOOL SPECS
| Weight | 2.8 kgs (6.2 lbs) |
|---|---|
| Height | 311mm (12.2") |
| Width | 128mm (5") |
| Length | 300mm (11.8") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 680 In-lbs @100 psi |

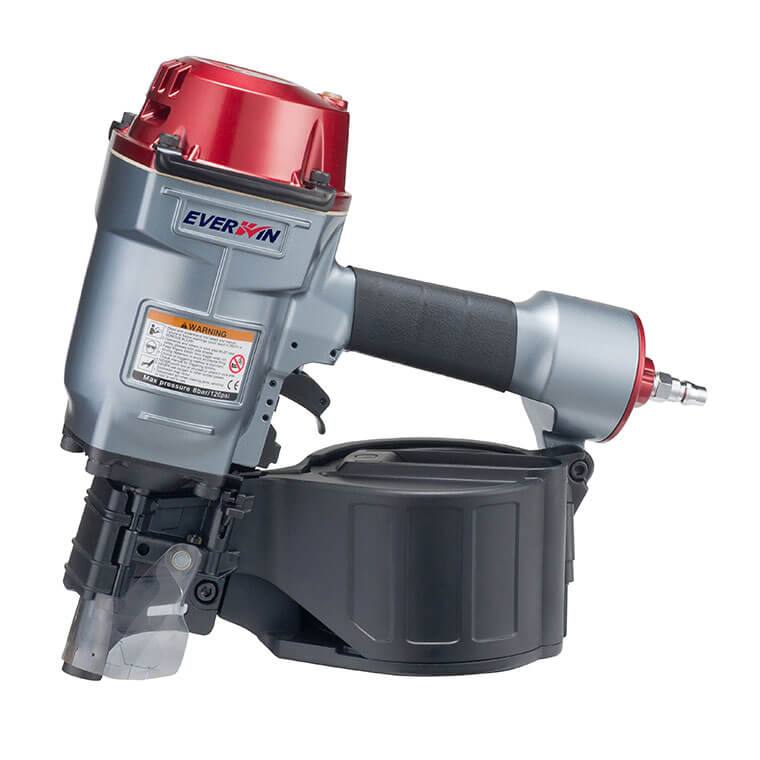

PN70
The PN70Coil Nailer is designed to drive up to a 2-3/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life.
- Metal nail tray with industry leading durability.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- High speed operation, 15 cycles/second.
- Fast and powerful for heavy duty applications.
- Optional heavy duty depth adjustment.
- Two trigger options available : PN70-ST (sequential) / PN70-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 225~300 |
| A | 45~70mm (1-3/4"~2-3/4") |
| B | 5.7~7.2mm (0.224"~0.283") |
| C | 2.3~2.9mm (0.092"~0.113") |
TOOL SPECS
| Weight | 3.6 kgs (7.9 lbs) |
|---|---|
| Height | 315mm (12.5" |
| Width | 128mm (5") |
| Length | 306mm (12") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 712 In-lbs @100 psi |

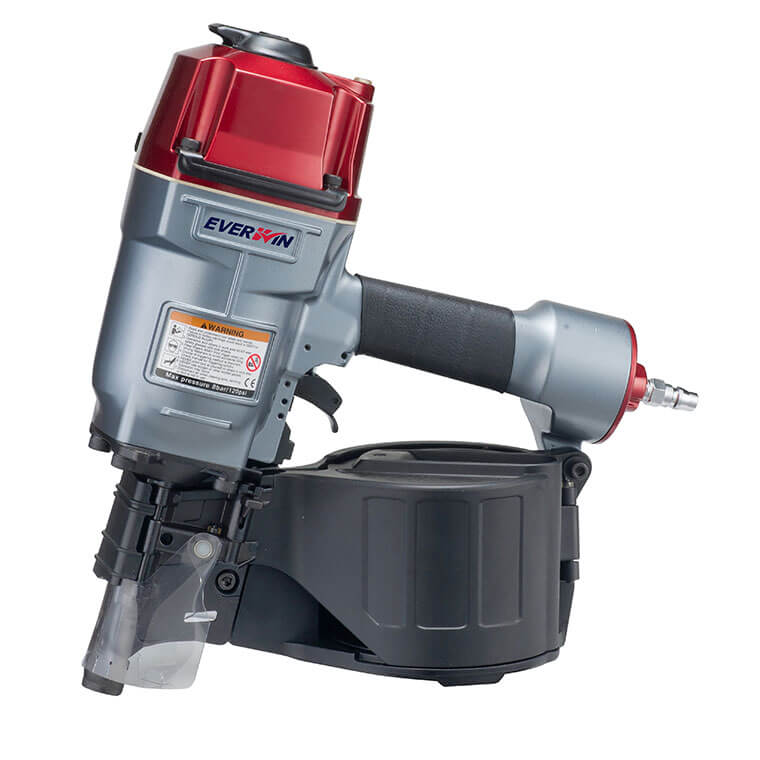

PN80
The PN80Coil Nailer is designed to drive up to a 3-1/4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life.
- Metal nail tray with industry leading durability.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- 360° multi directional exhaust cover
- High speed operation, 15 cycles/second.
- Powerful for heavy duty applications.
- Two trigger options available : PN80-ST (sequential) / PN80-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 225~300 |
| A | 50~83mm (2"~3-1/4") |
| B | 5.7~7.2mm (0.224"~0.283") |
| C | 2.5~3.3mm (0.099"~0.131") |
TOOL SPECS
| Weight | 3.96 kgs (8.7 lbs) |
|---|---|
| Height | 362mm (14.2") |
| Width | 128mm (5") |
| Length | 307mm (12.1") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 837 In-lbs @100 psi |

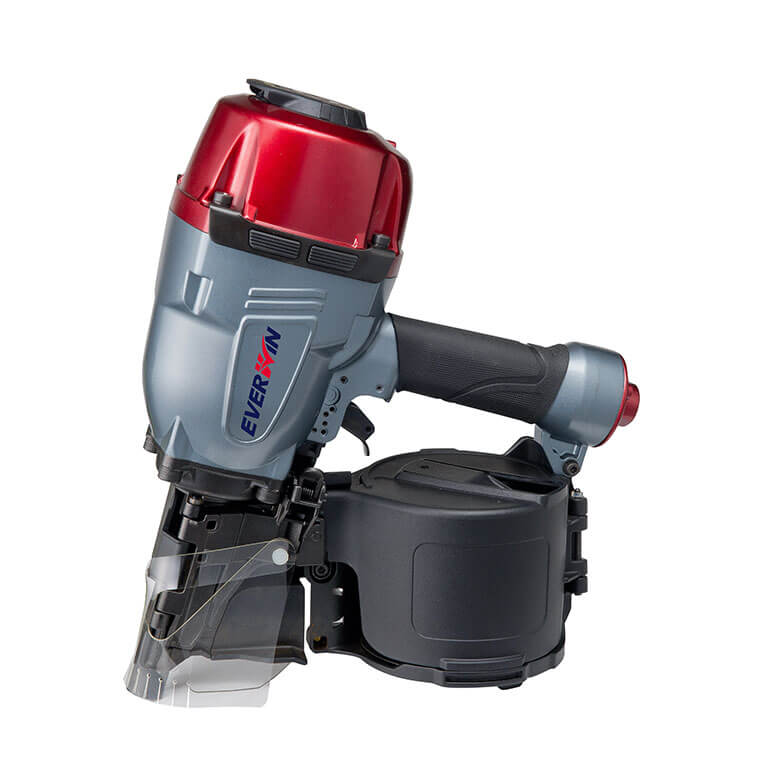

PN90
The PN90 Coil Nailer is designed to drive up to a 3-1/2" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Body protector on durable streamline frame.
- Hammerhead body minimizes recoil.
- Dust cover blocks nails or wire chips
- Durable nose and anti-abrasive driver provides extended tool life
- Metal nail tray with industry leading durability
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance.
- 360° multi directional exhaust cover
- High speed operation, 15 cycles/second.
- Industry-leading power-weight ratio.
- Machine mounting compatible.
- Two trigger options available : PN90-ST (sequential) / PN90-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly v
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 150~300 |
| A | 50~90mm (2"~3-1/2") |
| B | 5.7~7.2mm (0.224"~0.283") |
| C | 2.5~3.8mm (0.099"~0.148") |
TOOL SPECS
| Weight | 3.7 kgs (8.2 lbs) |
|---|---|
| Height | 350mm (13.8") |
| Width | 131mm (5.2") |
| Length | 302mm (11.9") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 1050 In-lbs @100 psi |

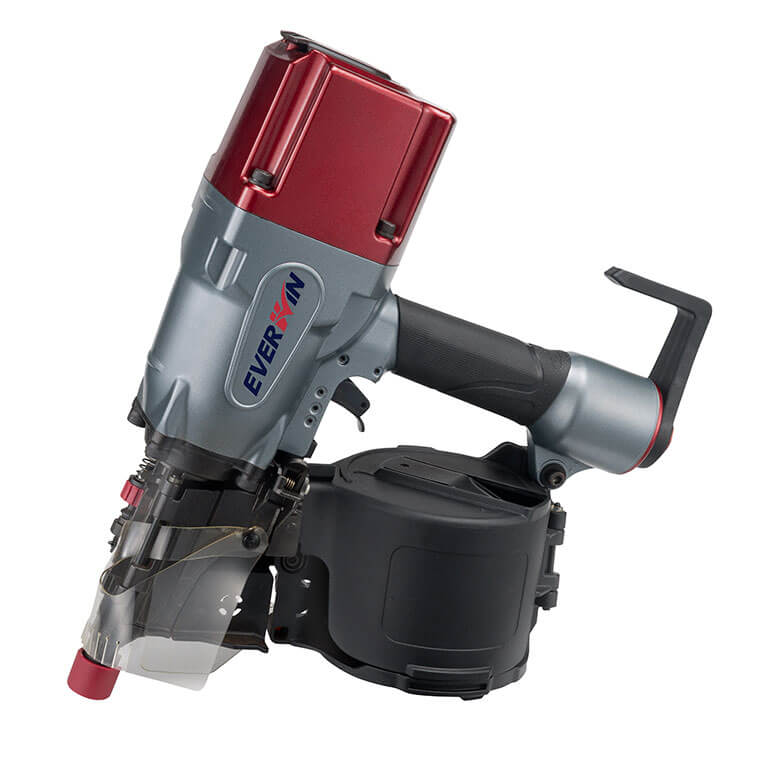

SCN90L
The SCN90L,driving up to a 3-1/2" nail is perfect for a wide range of framing applications. This tool drives smooth, ring, and screw shank coil nails in both wire and plastic sheet collation. Weighing only 3.0 kgs, the SCN90L is easy to maneuver and causes minimal fatigue. Helping you do More, Easier and Faster.
TOOL FEATURES
- Steel exhaust cover.
- Tool-free depth adjust
- Robust nylon magazine with industry leading durability.
- Robust rafter hook engineered composite material
- Magnesium ergonomic frame provides mobility and balance during operation.
- Industry leading power-weight ratio.
- Rapid cycling valve, 15 cycles/second.
- Two trigger options available : SCN90L-ST (sequential) / SCN90L-CT (contact)
APPLICATIONS
- Roofing, Decking
- Cladding
- Timber Frame Construction
- Wall Panel Construction v
FASTENER SPECS
| Type | 15° Wire & Plastic Collated Nails |
|---|---|
| Loading Capacity | 150~300 |
| A | 50~90mm (2"~3-1/2") |
| B | 6.5~7.7mm (0.256"~0.303" |
| C | Wire : 2.5~3.8mm(0.099"~0.148") Plastic : 2.5~2.9mm(0.099"~0.113" |
TOOL SPECS
| Weight | 3.0 kgs (6.6 lbs) |
|---|---|
| Height | 364mm (14.3" |
| Width | 130mm (5.1") |
| Length | 311mm (12.2") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 1000 In-lbs @100 psi |

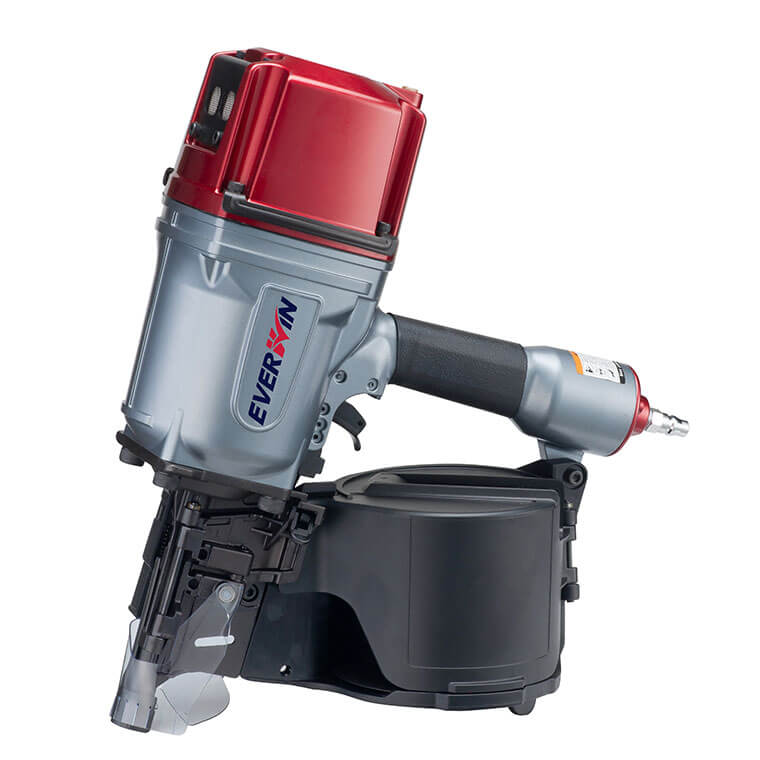

PN100
The PN100, Coil Nailer is designed to drive up to a 4" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Down-flow exhaust and built-in silencer.
- Body protector on durable streamline frame
- Dust cover blocks nails or wire chips.
- Durable nose and anti-abrasive driver provides extended tool life.
- Tough nylon, fast and easy loading magazine.
- Cushioned rubber grip and ergonomic frame provides comfort and balance
- High speed operation.
- Top power for hard wood applications.
- Two trigger options available : PN100-ST (sequential) / PN100-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 200~300 |
| A | 65~100mm (2"-1/2"~4") |
| B | 6.5~7.5mm (0.256"~0.295") |
| C | 2.5~3.3mm (0.099"~0.131") |
TOOL SPECS
| Weight | 5.5 kgs (12.1 lbs) |
|---|---|
| Height | 417mm (16.4") |
| Width | 156mm (6.1") |
| Length | 338mm (13.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 1470 In-lbs @100 psi |

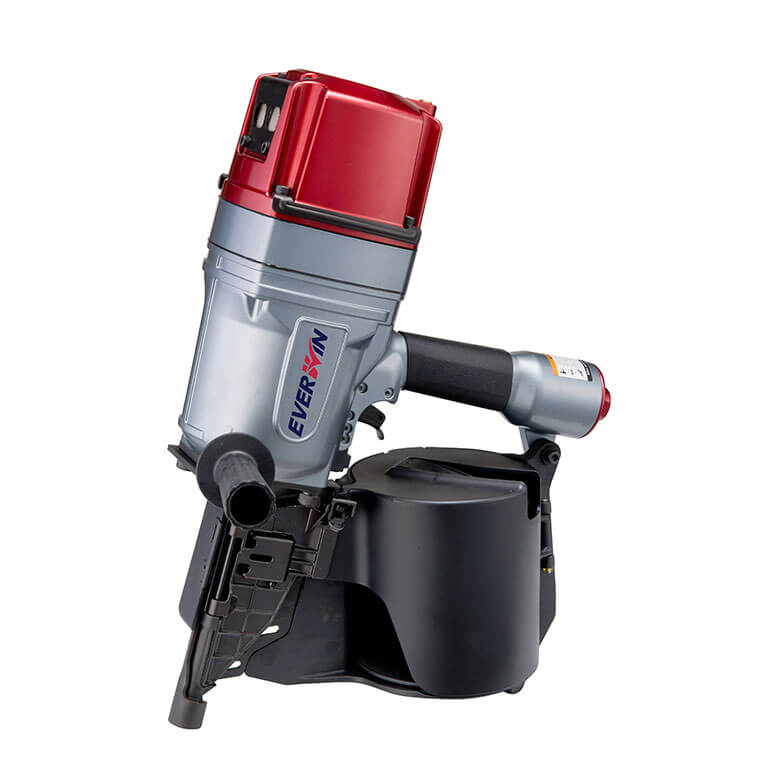

PN130
The PN130, Coil Nailer is designed to drive up to a 5-1/8" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
TOOL FEATURES
- Down-flow exhaust and built-in silencer.
- Body protector on enduring frame
- Durable nose and anti-abrasive driver provides extended tool life.
- Removable side handle for absolute control..
- Tough nylon, fast and easy loading magazine with metal nail tray, most durable in the industry.
- Cushioned rubber grip and ergonomic frame provides comfort and balance
- High speed operation.
- Top power for hard wood applications.
- Available with contact fire trigger
- Shock-absorbent auxiliary side handle.
- Two trigger options available : PN130B-ST (sequential) / PN130B-CT (contact)
APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
FASTENER SPECS
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 120~225 |
| A | 90~130mm (3-1/2"~5-1/8") |
| B | 7.5~8.6mm (0.295"~0.338") |
| C | 3.3~3.8mm (0.131"~0.150") |
TOOL SPECS
| Weight | 6.0 kgs (13.2 lbs) |
|---|---|
| Height | 467mm (18.4") |
| Width | 156mm (6.1") |
| Length | 338mm (13.3") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 1811 In-lbs @100 psi |
